DR
CHOKE COIL :
DR CORE ,
R CORE , TOROIDAL CORE
FEATURE

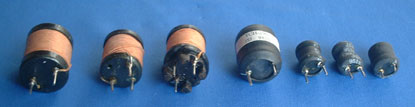

DR CORE
|
Compact and light weight. |
| |
Excellent frequency characteristics |
| R CORE |
For high current. |
TOROIDAL CORE
Enable common-mode noise suppression the influence of video signals.
APPLICATION
Switching
power supply.
TV and CRT Monitor displays.
Audio & Visual equipment and chargers.
DR CORE
| 1. DR 10x6 |
1. DRW 9x12 |
7. DRW 18x18 |
| 2. DR 11x10 |
2. DRW 10x12 |
8. DRW 18x20 |
| 3. DR 13x15 |
3. DRW 10x15 |
9. DRW 18x22 |
| 4. DR 15x13 |
4. DRW 10x16 |
10. DRW 6x 8 |
| 5. DR 15x15 |
5. DRW 14x15 |
11. DRW 7x 8 |
| 6. DR 16x18 |
6. DRW 16x18 |
12. DRW 8x10 |
IF YOU HAVE ANY REQUEST PLEASE
CONTACT WITH US.
DR CORE
| 1. 1.6x12 |
6. 3.0x10 |
11. 5.0 x 25 |
16. 6.5 x 18 |
| 2. 1.7x14 |
7. 3.0x15 |
12. 6.0 x 15 |
17. 6.5 x 30 |
| 3. 2.5x14 |
8. 4.0x12 |
13. 6.0 x 20 |
18. 8.0 x 25 |
| 4. 3.3x17 |
9. 4.4x20 |
14. 6.0 x 25 |
19.10.0 x 30 |
| 5. 3.5x20 |
10. 5.0 x 20 |
15. 6.0 x 30 |
20.11.6 x 20.4 |
IF YOU HAVE ANY REQUEST PLEASE
CONTACT WITH US.
TOROIDAL CORE
According to the material , can be classified Ferrite core , Iron
power nickel alloy.
That used in current resistance frequency filtration , inductance
specific current
Transformer etc.
IF YOU HAVE ANY REQUEST PLEASE
CONTACT WITH US.
|
