SMT
POWER INDUCTOR:
FEATURE
For large current circuit duo to its low DC resistance.
Excellent in the
terminal strength.
APPLICATION
Switching
power supplies.
Notebook computer
, TFT LCD Display , PDAS etc.

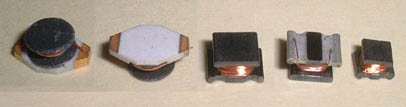

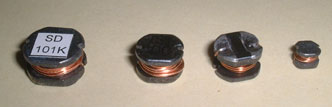

SMT POWER INDUCTOR WITHOUT
SHIELD
CD TYPE
| |
INDUCTANCE
|
A ±0.3mm
|
B ±0.3mm
|
C ±0.3mm
|
|
JSI
43
|
1.00 -68.00μH
|
4.0
|
3.2
|
4.5
|
|
JSI
53
|
1.00 -1000μH
|
5.2
|
3.2
|
5.8
|
|
JSI
54
|
1.00 -1000μH
|
5.2
|
4.5
|
5.8
|
|
JSI
73
|
10.0 - 300μH
|
7.0
|
3.5
|
7.8
|
|
JSI
75
|
10.0 - 470μH
|
7.0
|
5.0
|
7.8
|
|
JSI
104
|
10.0 - 560μH
|
9.0
|
4.0
|
10.0
|
|
JSI
105
|
10.0 - 820μH
|
9.0
|
5.4
|
10.0
|
IF
YOU HAVE ANY REQUEST PLEASE CONTACT WITH US.

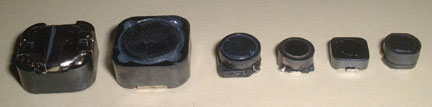

SMT POWER INDUCTOR WITH SHIELD
CDR TYPE
| |
INDUCTANCE
|
A ±0.5mm
|
B ±0.5mm
|
C ±0.5mm
|
|
JSIR 74B
|
10.0
- 270μH
|
7.80
|
7.00
|
4.5
|
|
JSIR 105B
|
10.0
- 470μH
|
10.0
|
9.00
|
5.0
|
|
JSIR 125
|
10.0
- 820μH
|
12.6
|
11.6
|
5.4
|
|
JSIRHB 73
|
10.0 - 1000μH
|
7.30
|
7.30
|
3.5 MAX.
|
|
JSIRHB 74
|
10.0 - 1000μH
|
7.30
|
7.30
|
4.5 MAX.
|
|
JSIRHB124
|
3.90 –1000μH
|
12.0
|
12.0
|
4.5 MAX.
|
|
JSIRHB125
|
10.0 - 1000μH
|
12.0
|
12.0
|
6.0 MAX.
|
IF YOU HAVE ANY REQUEST PLEASE
CONTACT WITH US.
|
|
 |
 |
